Gas Sensor MQ6 Sensitive LPG Butane Propane Gases

RM15.00

Gas Sensor MQ6 Sensitive LPG Butane Propane Gases

RM15.00

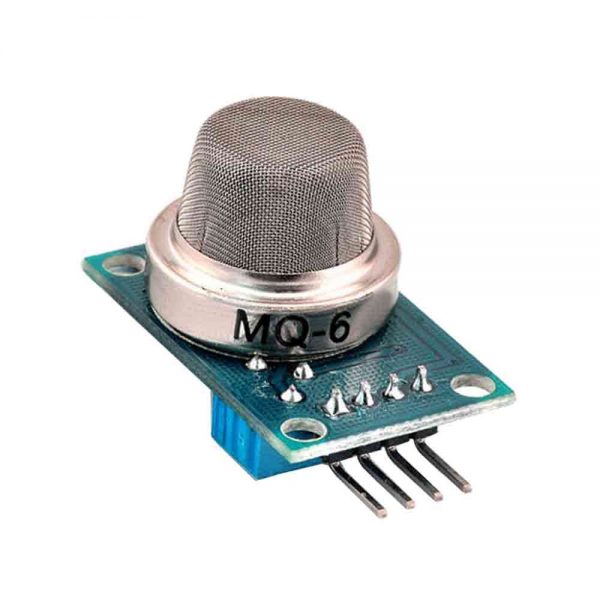

MQ6 is a semiconductor sensor which can detect LPG, LNG, iso-butane, propane gases at concentrations from 200 to 10,000ppm. The sensitive material used for this sensor is SnO2, whose conductivity is lower in clean air.

Add to Wishlist
Add to Wishlist
Categories: ,

Description

It’s conductivity increases as the concentration of sensing gases increases. It has also some sensitivity to smoke and alcohol. MQ6 LPG LNG iso-butane, propane gas sensor module can be easily interfaced with Microcontrollers, Arduino Boards, Raspberry Pi etc.

Features

High sensitivity to LPG, iso-butane, propane
Small sensitivity to alcohol, smoke
Low Cost
Fast Response
Stable and Long Life
Analog and Digital Outputs
Trigger Level configuration Potentiometer

Specifications

Detecting Concentration : 200 ~ 10,000 ppm
Operating Temperature : -10°C ~ 50°C

Operating Voltage: DC 5V
Analog Output (AO): 0~5V analog output voltage
Digital Outout (DO): 0V or 5V output
Configuration: Through Potentiometer (adjusts the output level transition)
Preheat Duration: 20s
Weight: 5g
Dimensions: 23 x 19 x 19 mm
