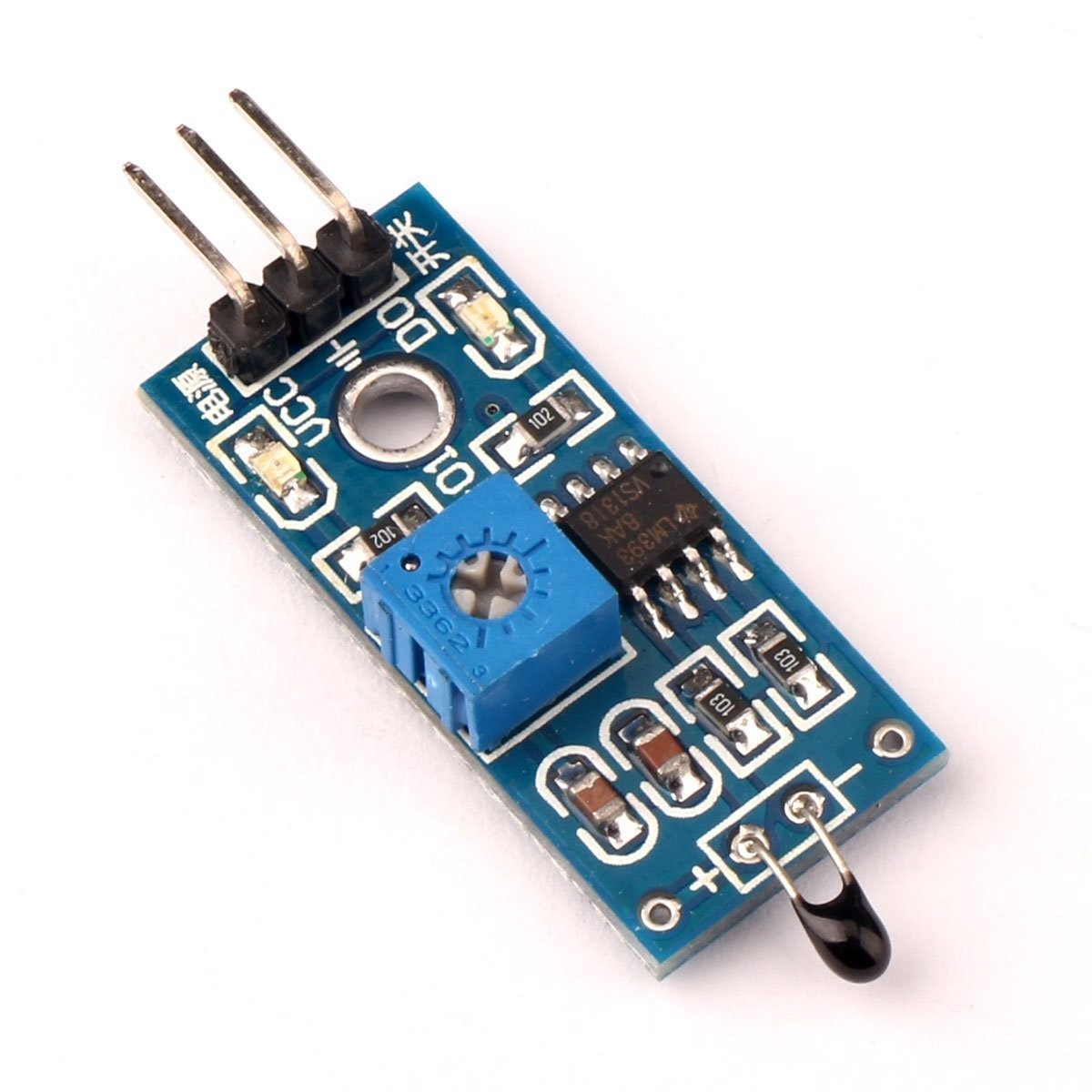

NTC Thermistor Module LM393 (Temperature up to 80 Degree Celsius)

RM10.00

NTC Thermistor Module LM393 (Temperature up to 80 Degree Celsius)

RM10.00

This NTC thermistor module has an NTC temperature sensor which gives an only digital output that allows you to easily add over-temperature and under-temperature condition sensing capabilities to your new project.

Add to Wishlist
Add to Wishlist
Categories: ,

Description

The temperature detection threshold is adjustable via a potentiometer. It uses the LM393 based voltage comparator chip which features a clean and stable digital output signal and a driving ability of 15mA.

The DO output can be directly connected to the microcontroller, and it outputs a high or low-level voltage depending on the temperature changes from the environment.

The DO output can be used directly drive a relay module or as a thermostat switch for controlling external equipment, such as a cooling fan.

Features :

  • NTC Thermistor sensor
  • LM393 voltage comparator
  • Mounting hole for easy installation
  • Adjustable threshold via potentiometer

Specification :

  • Operating Voltage: 3.3V DC to 5V DC
  • Output Current: 15mA
  • Output Type: Digital (HIGH OR LOW)
  • PCB Size: 32 x 14mm
  • Temperature Range: 20°C – 80°C

Package Include:

  • 1x LM393 Thermal Sensor Module
